Wuko 7200 Sheet Metal Uber Bender Duo

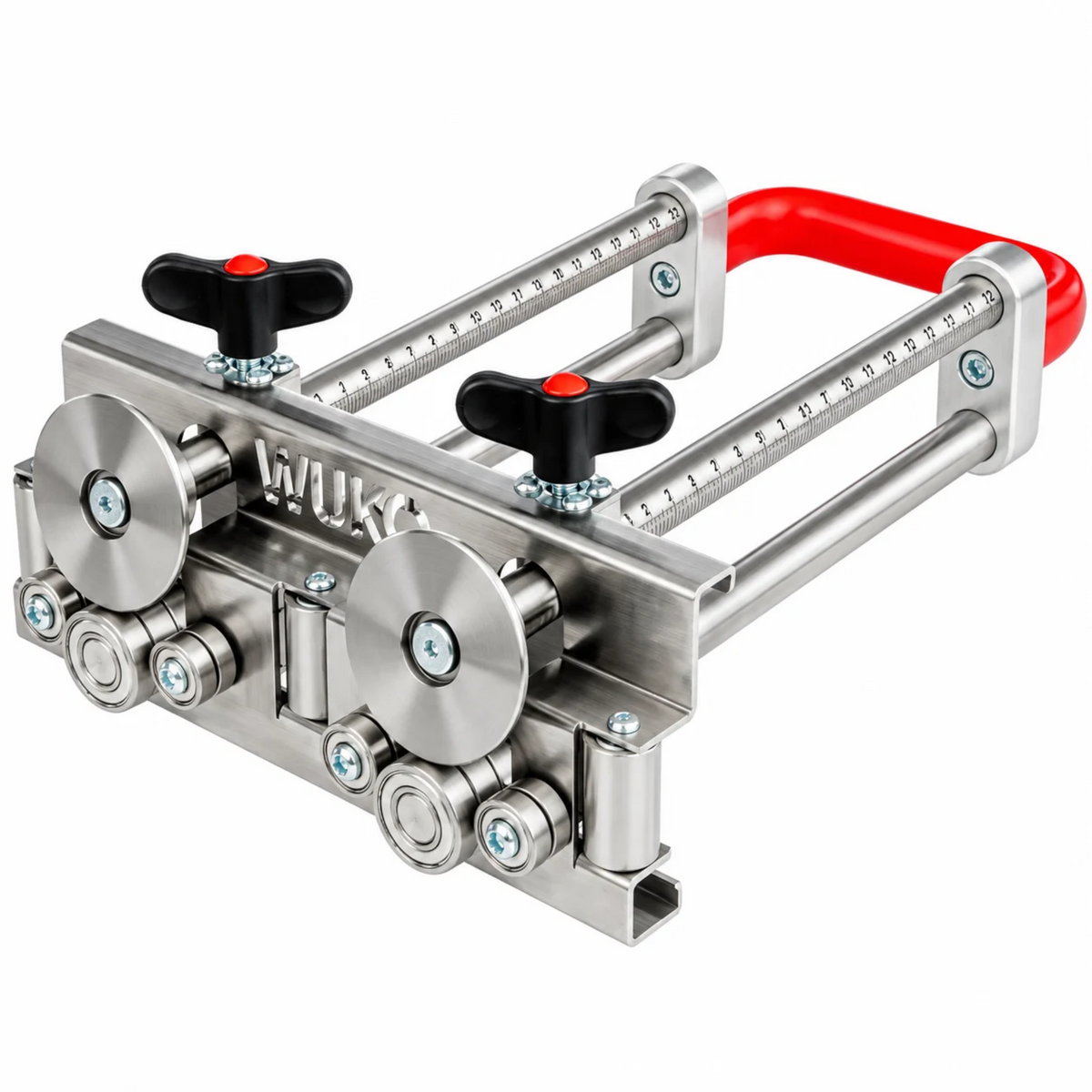

The WUKO 7200 Uber Bender Duo is a professional handheld sheet metal bending tool specifically designed for quick, precise bending of long, straight sheet metal panels. Equipped with two pairs of angled bending discs and dual handles, the Uber Bender Duo provides improved stability, control, and consistent bending performance along extended sheet metal strips.

With an adjustable bending height ranging from 6 mm (1/4") to 200 mm (8"), the WUKO 7200 produces clean bends from 0° to 100°. Its angled bending discs are especially useful when working with spring-back materials, delicate sheet metal surfaces, and panels with longitudinal beadings. The tool is delivered in a carrying case and is available with centimeter or inch measurement scales, with optional Plus Set configurations for enhanced bending control and surface protection.

Features & Benefits

• 100° Bending Capability: Forms clean, precise bends from 0° to 100°, helping achieve accurate bends when working with spring-back materials.
• Adjustable Bending Height: Accommodates bending heights from 6 mm (1/4") to 200 mm (8").

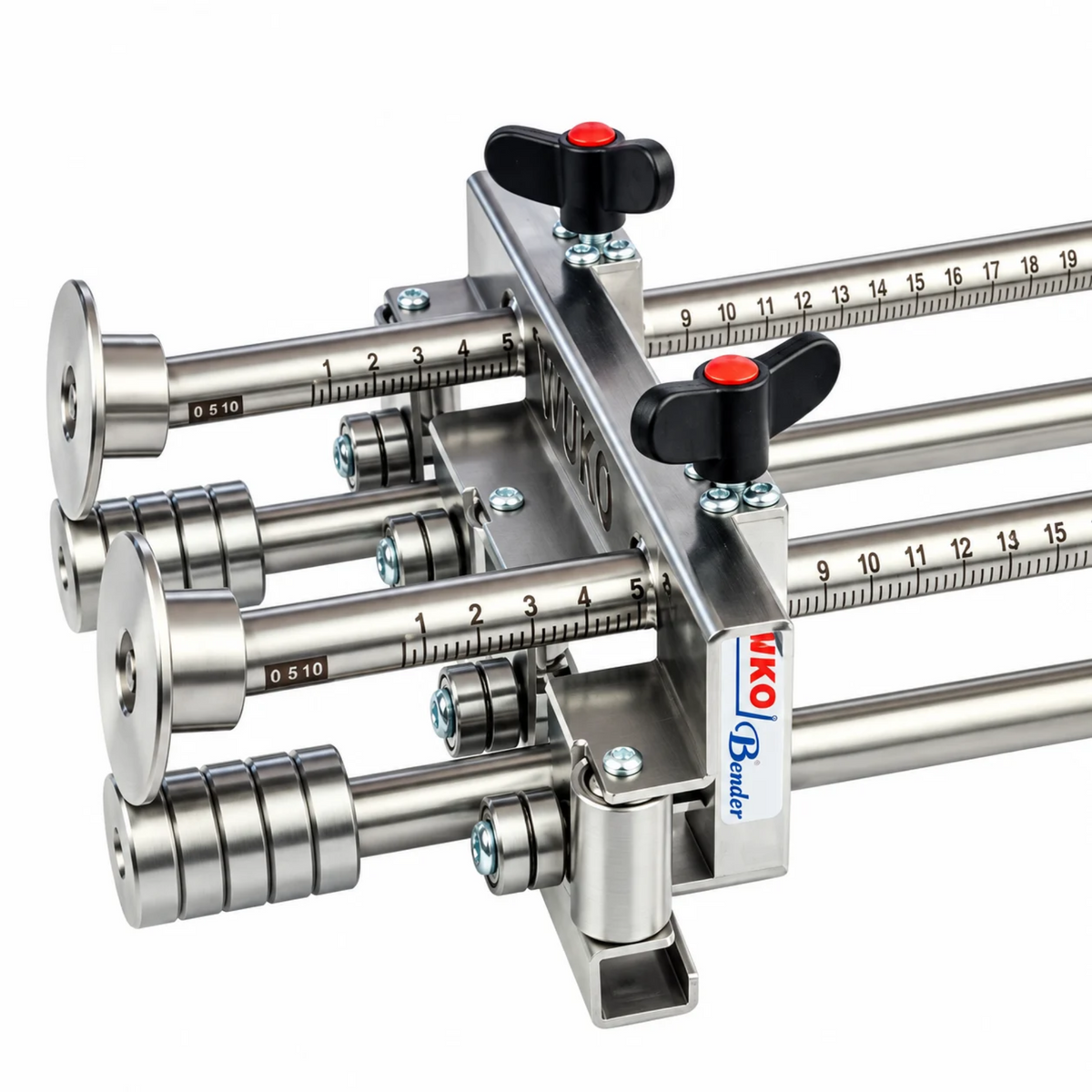

• Dual Angled Bending Discs: Two pairs of angled bending discs provide consistent guidance and stability when forming long, straight bends.
• Dual Handles: Additional handle improves control and handling along extended sheet metal strips.
• Material Surface Protection: Designed to help protect delicate and finished sheet metal surfaces during bending.
• Spring-Back Material Compatibility: Extended bending angle helps compensate for material spring-back when forming 90° bends.
• Longitudinal Beading Capability: Suitable for bending along panels with longitudinal beadings.

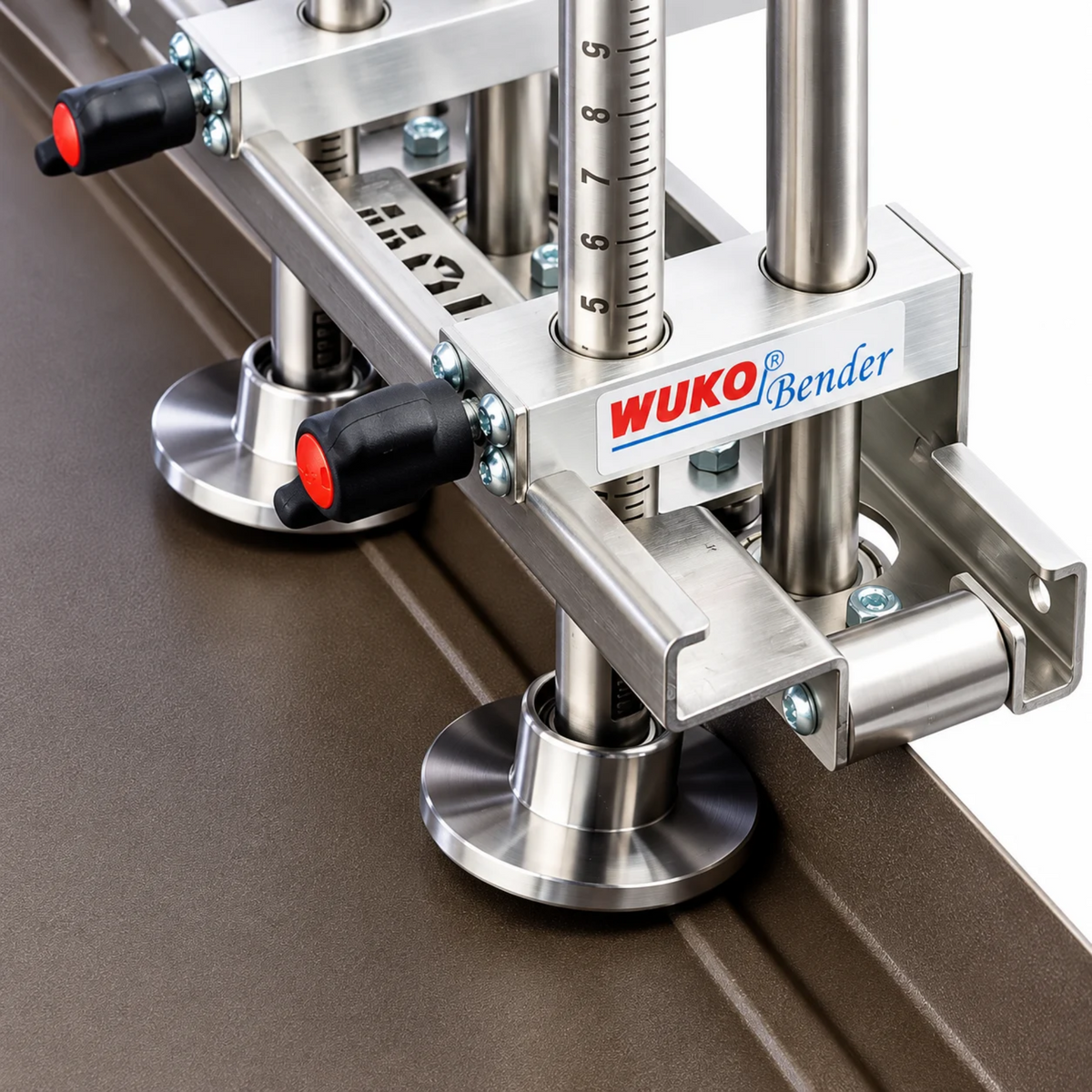

• Long Panel Bending: Designed for efficient bending of long, straight sheet metal panels and flashings.
• Versatile Applications: Ideal for metal roofing, architectural sheet metal, and custom flashing fabrication.
• Plus Set Compatible: Available with optional accessories for improved pressure control and surface protection.

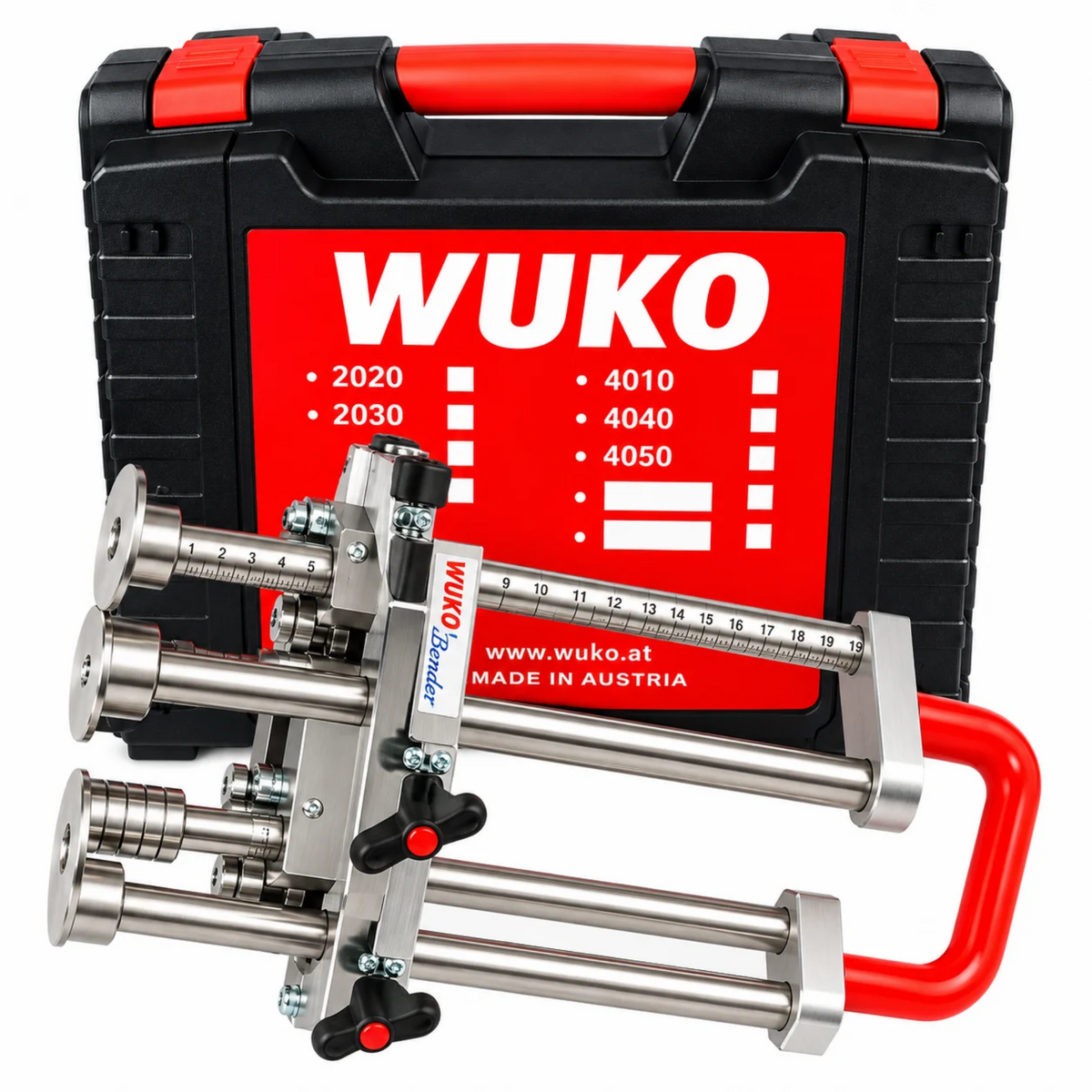

• Carrying Case Included: Provides convenient storage and protection during transportation.
• Manual Operation: No electrical power required.

Technical Specifications

• Bending Angle: 0°–100°
• Minimum Bending Height: 6 mm (1/4")
• Maximum Bending Height: 200 mm (8")
• Bending Capacity: 0.80 mm (24 ga) for common sheet metals
• Weight: 6.06 lbs (2.75 kg)
• Bending Mechanism: Two pairs of angled bending discs
• Measurement Scale: Centimeter or Inch
• Operation: Manual
• Included Storage: Carrying case

Available Models

• Centimeter Scale: Standard WUKO 7200 with metric measurements.
• Inch Scale: Standard WUKO 7200 with imperial measurements.
• Centimeter Scale with Plus Set: WUKO 7200 with metric measurements and Duo Bender Plus Set accessories.
• Inch Scale with Plus Set: WUKO 7200 with imperial measurements and Duo Bender Plus Set accessories.

Optional Accessories

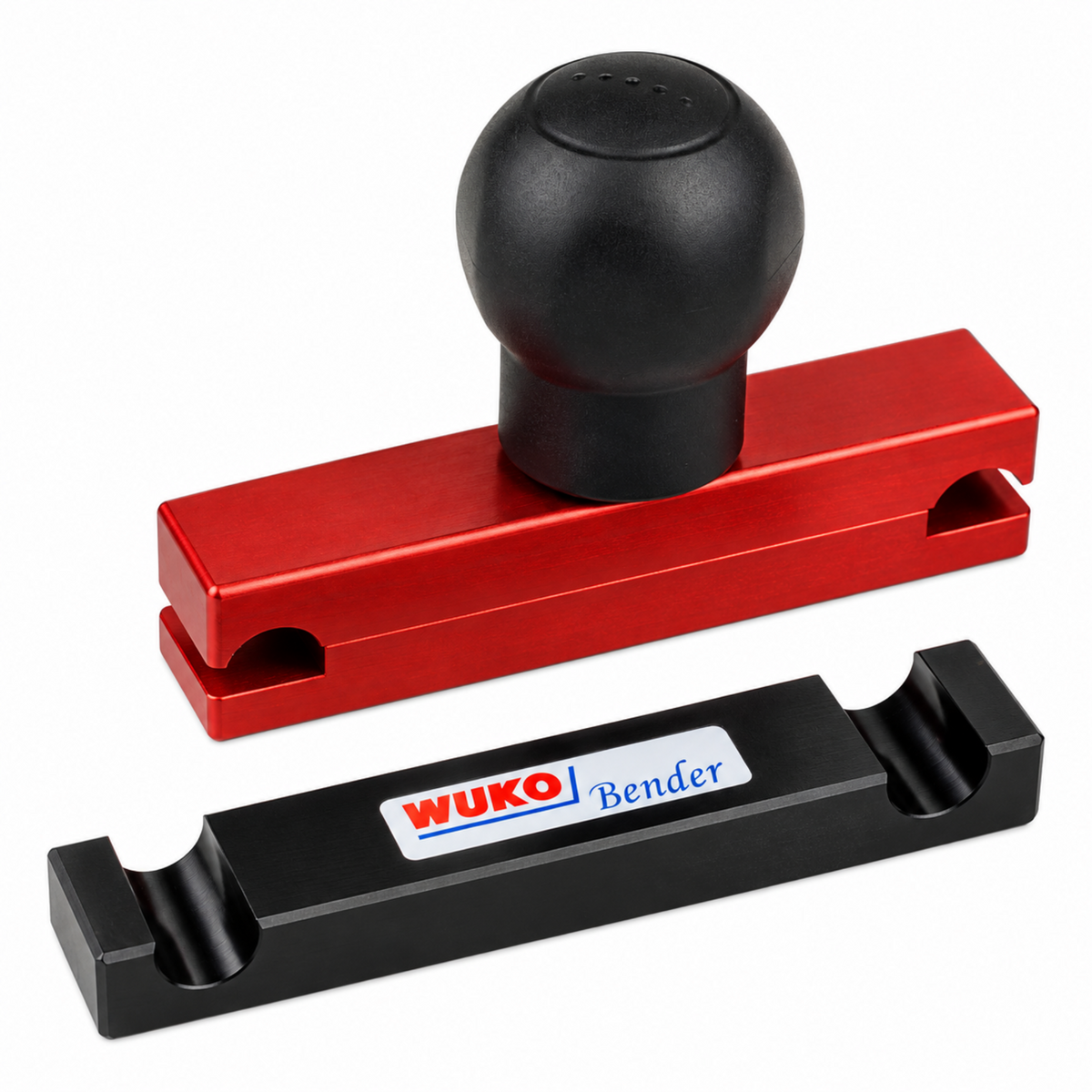

The WUKO Plus Set for Duo Benders is designed to improve bending control and protect finished sheet metal surfaces. Available separately or included with Plus Set configurations, the set contains:

• Super Clamping Handle: Quickly attaches to the upper shafts of the bender, allowing pressure to be applied directly where needed for improved bending control.
• Quick Click Supporting Rail: Attaches to the lower shafts to help distribute pressure and prevent unwanted marks on finished sheet metal surfaces.

WUKO 7200 vs. WUKO 7350 Uber Bender Duo

Both Uber Bender Duo models feature two pairs of angled bending discs and are designed for precise bending of long, straight sheet metal panels. The primary difference is their maximum bending height.

• WUKO 7200 Uber Bender Duo: Bending heights from 6 mm (1/4") to 200 mm (8"). Ideal for standard flashings, standing seam profiles, and smaller bending applications.
• WUKO 7350 Uber Bender Duo: Bending heights from 6 mm (1/4") to 350 mm (14"). Ideal for taller flashings and larger sheet metal profiles.
