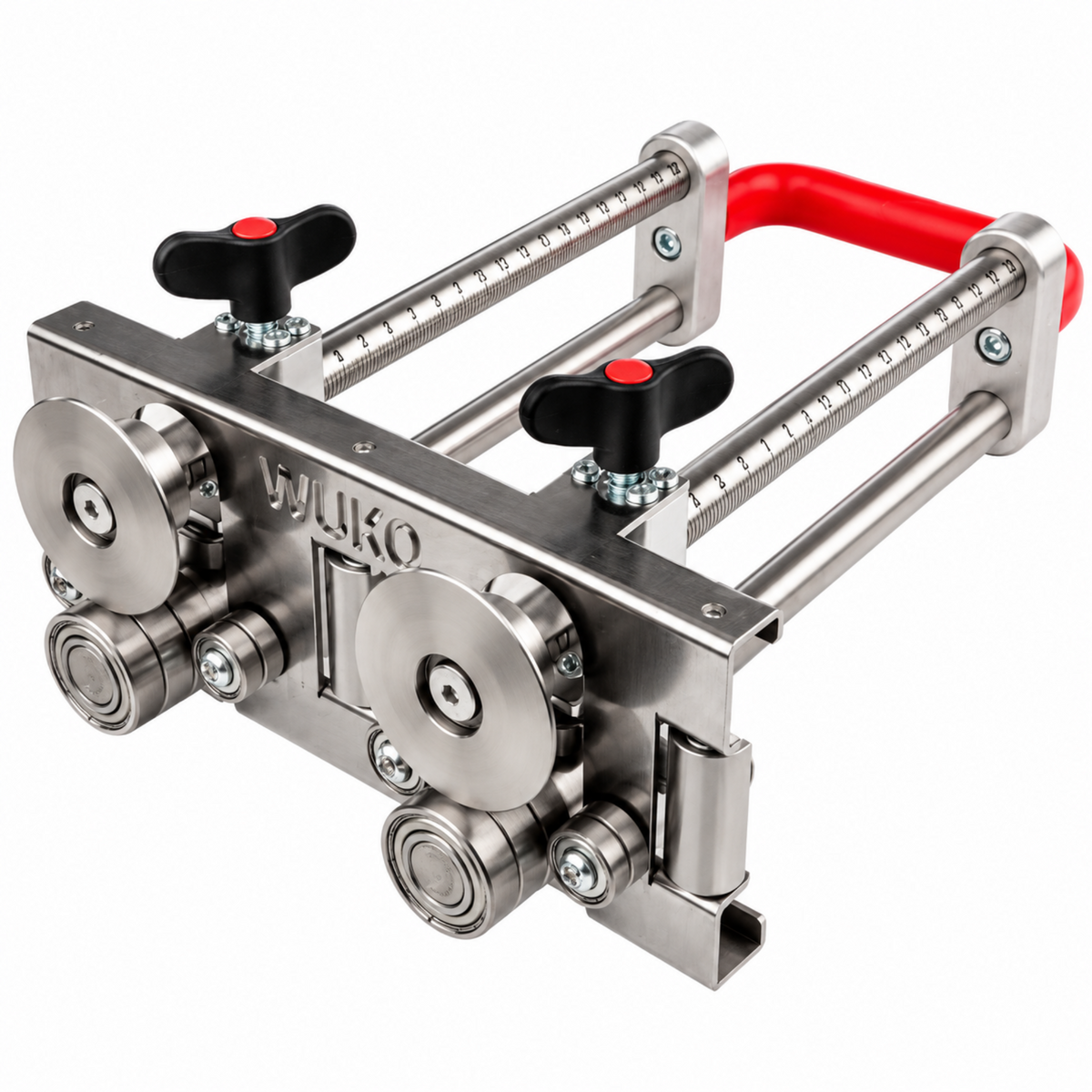

Wuko 8200 Sheet Metal Hem Bender

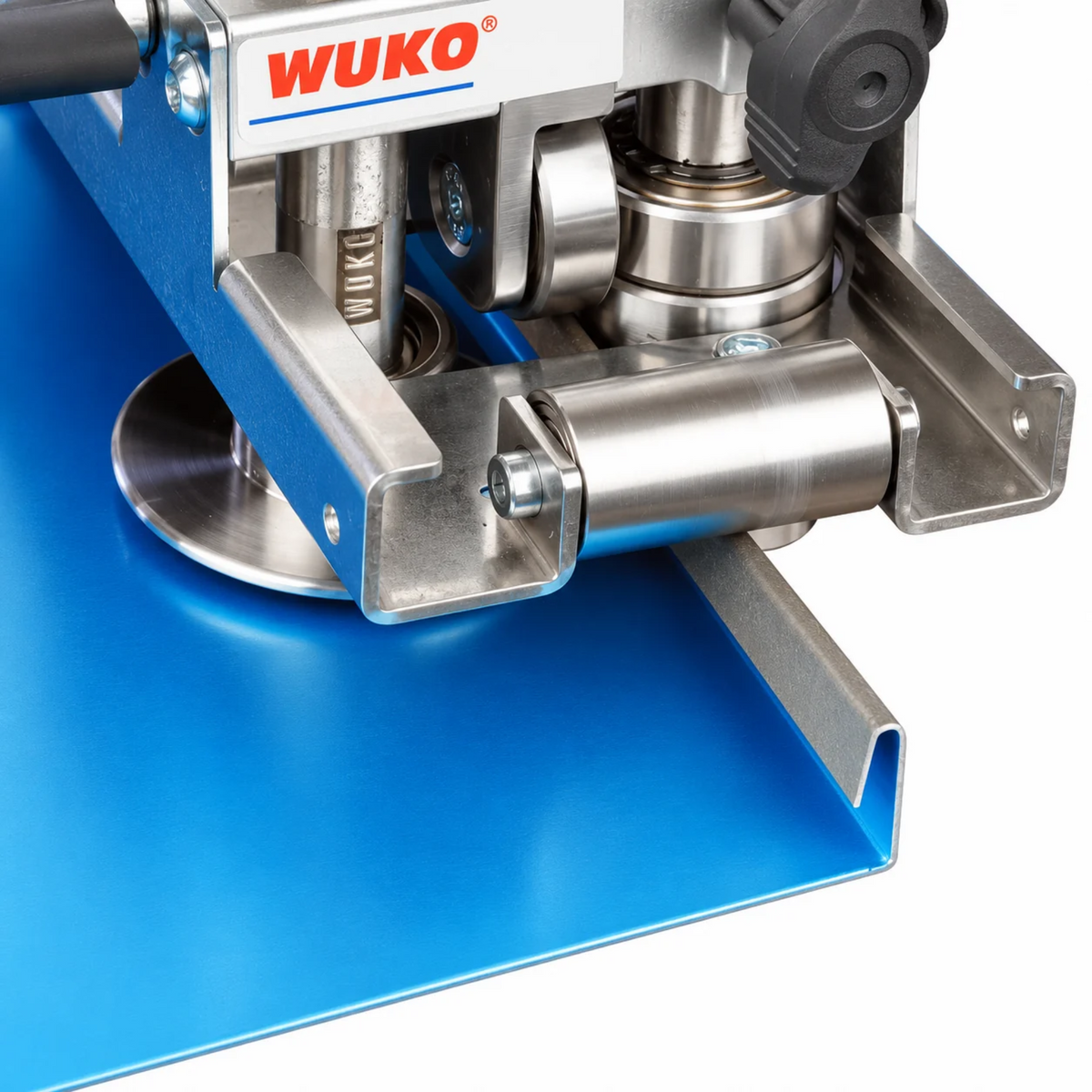

The WUKO 8200 Hem Bender is a professional handheld sheet metal bending and hemming tool designed to perform two operations with one tool. Combining the functionality of a traditional sheet metal bender and hemming tool, the WUKO 8200 allows users to form precise bends from 0° to 90° and create finished hems up to 180° without switching tools.

With an adjustable bending height ranging from 6 mm (1/4") to 200 mm (8") and a maximum hemming height of 14 mm (9/16"), the WUKO 8200 is ideal for long, straight sheet metal panels, roof flashings, standing seam profiles, and architectural sheet metal fabrication. Equipped with two pairs of bending discs and dual handles, it provides stability and control while requiring less working clearance than conventional bending tools. The tool is delivered in a sturdy carrying case and is available with centimeter or inch measurement scales.

Features & Benefits

• Two-in-One Bending & Hemming: Forms sheet metal bends up to 90° and finishes hems up to 180° using a single tool.
• Adjustable Bending Height: Accommodates bending heights from 6 mm (1/4") to 200 mm (8").
• Integrated Hemming Capability: Creates finished hems up to 14 mm (9/16") without requiring a separate hemming tool.

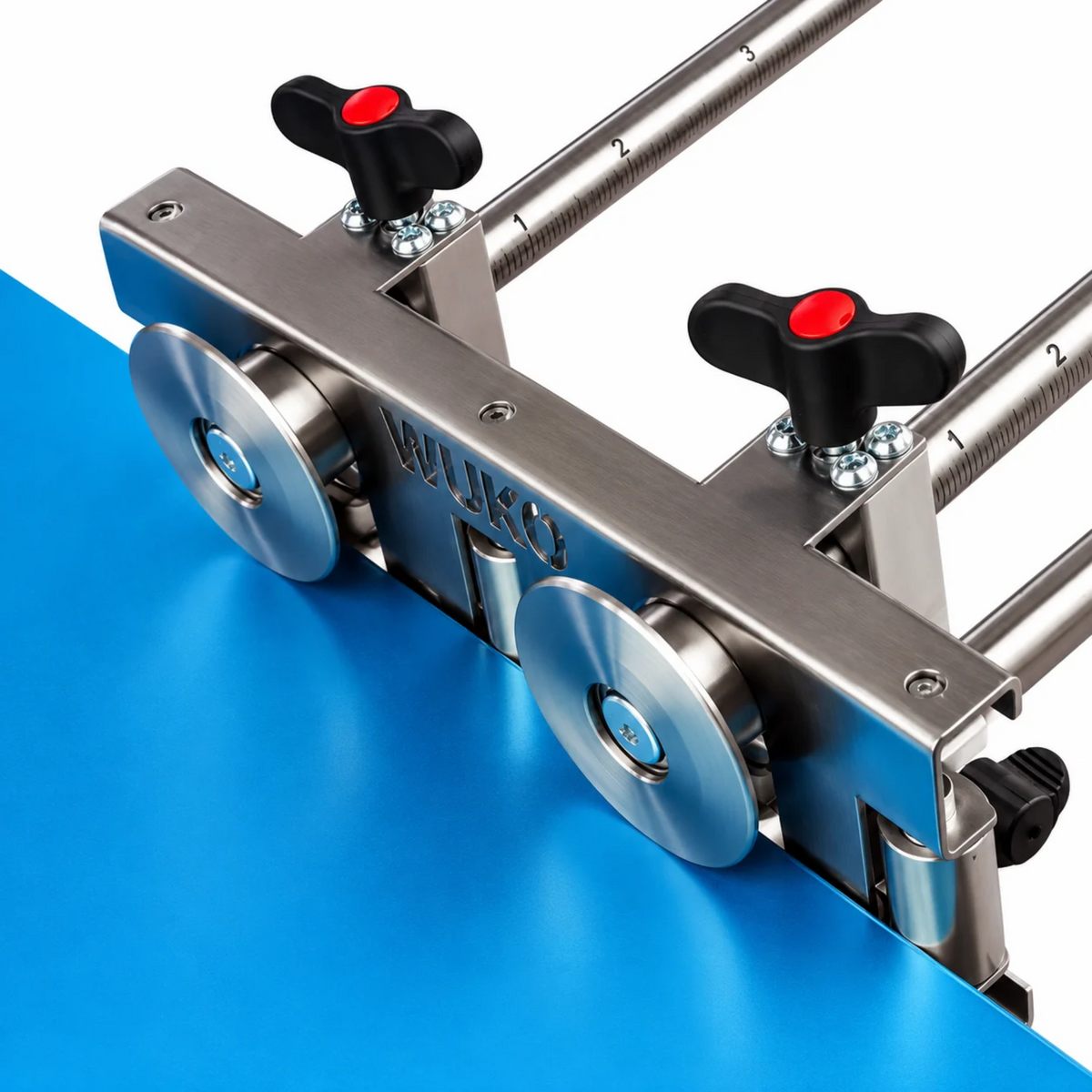

• Dual Bending Disc Design: Two pairs of bending discs provide consistent guidance and stability when forming long, straight bends.
• Dual Handles: Provides improved control and leverage when bending and hemming extended sheet metal strips.
• Reduced Working Clearance: Bending disc design allows closer bending in applications with limited working space.
• Long Panel Bending: Designed for efficient bending and hemming of long, straight sheet metal panels.
• Versatile Applications: Ideal for metal roofing, standing seam profiles, custom flashings, and architectural sheet metal fabrication.
• Efficient Operation: Eliminates the need to switch between separate bending and hemming tools.
• Multiple Scale Options: Available with centimeter or inch measurement scales.

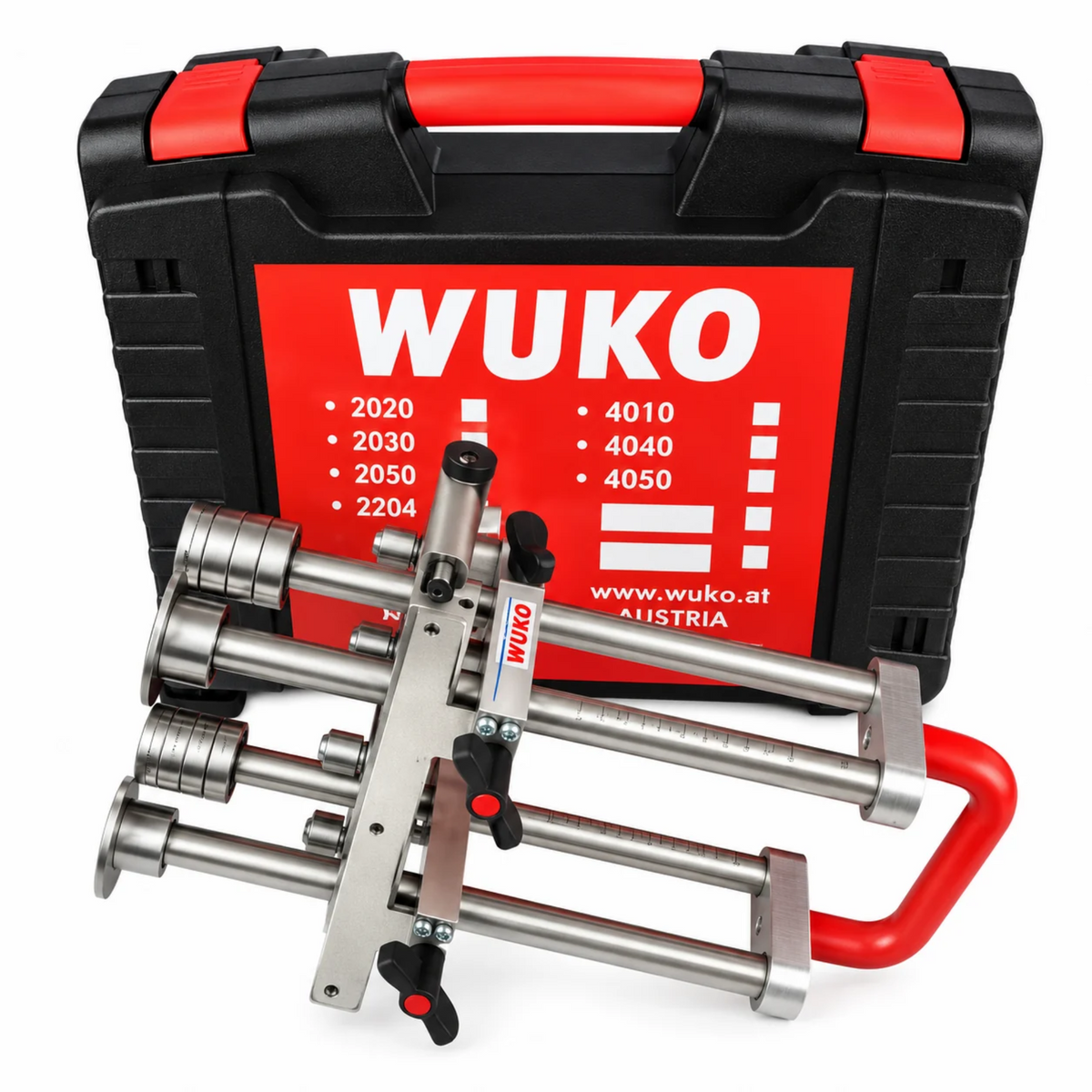

• Carrying Case Included: Provides protection during storage and transportation.
• Manual Operation: No electrical power required.

Technical Specifications

• Bending Angle: 0°–180°
• Minimum Bending Height: 6 mm (1/4")
• Maximum Bending Height: 200 mm (8")
• Maximum Hemming Height: 14 mm (9/16")
• Maximum Bending Capacity: 0.80 mm (24 ga) for common sheet metals
• Weight: 6.7 lbs (3.02 kg)
• Bending Mechanism: Two pairs of bending discs
• Measurement Scale: Centimeter or Inch
• Operation: Manual
• Included Storage: Carrying case
