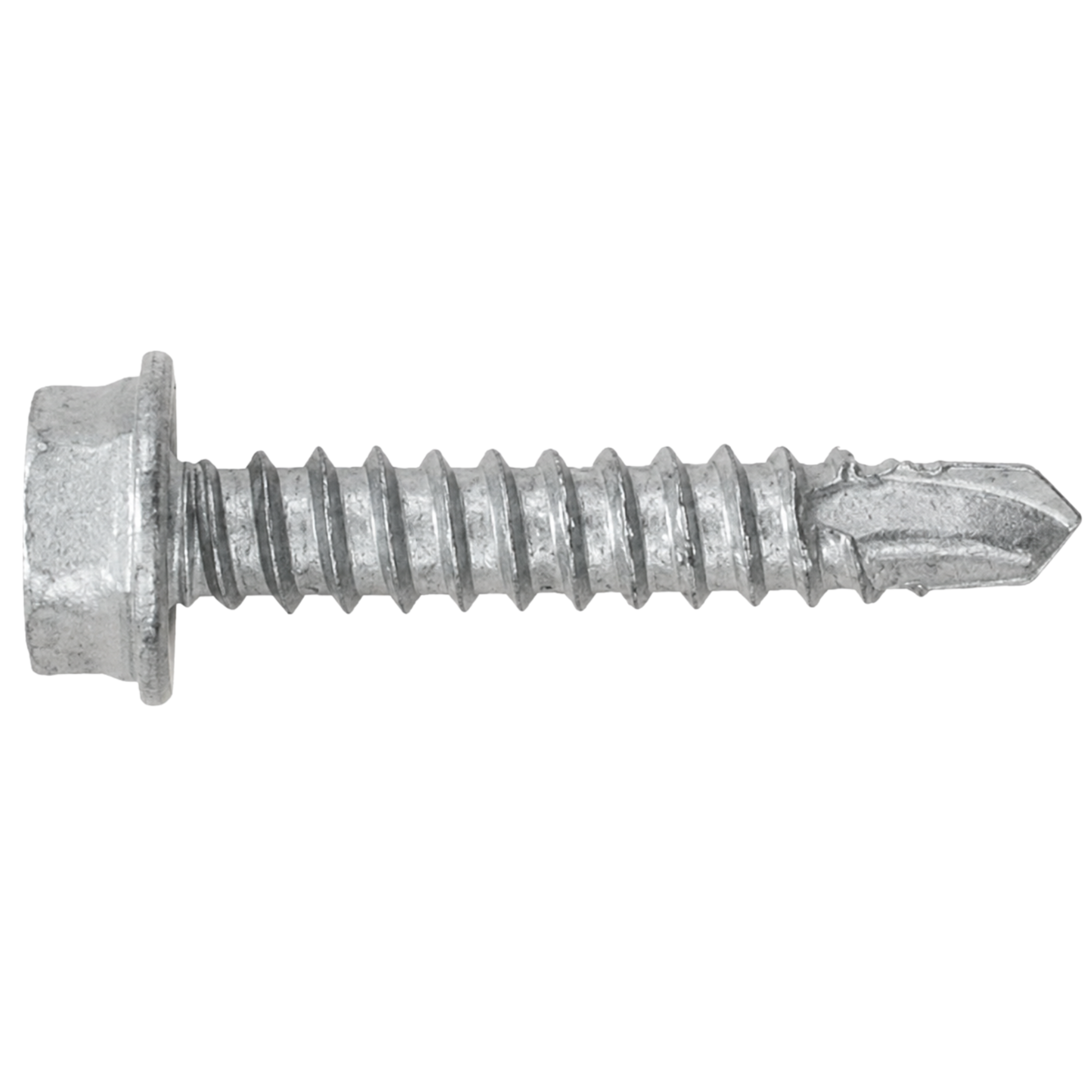

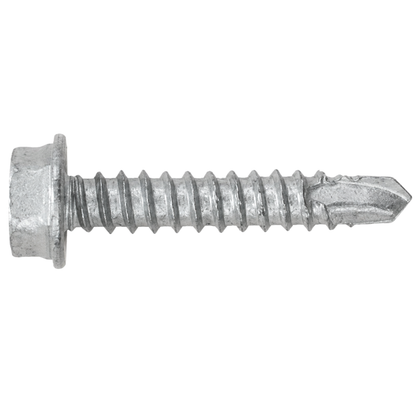

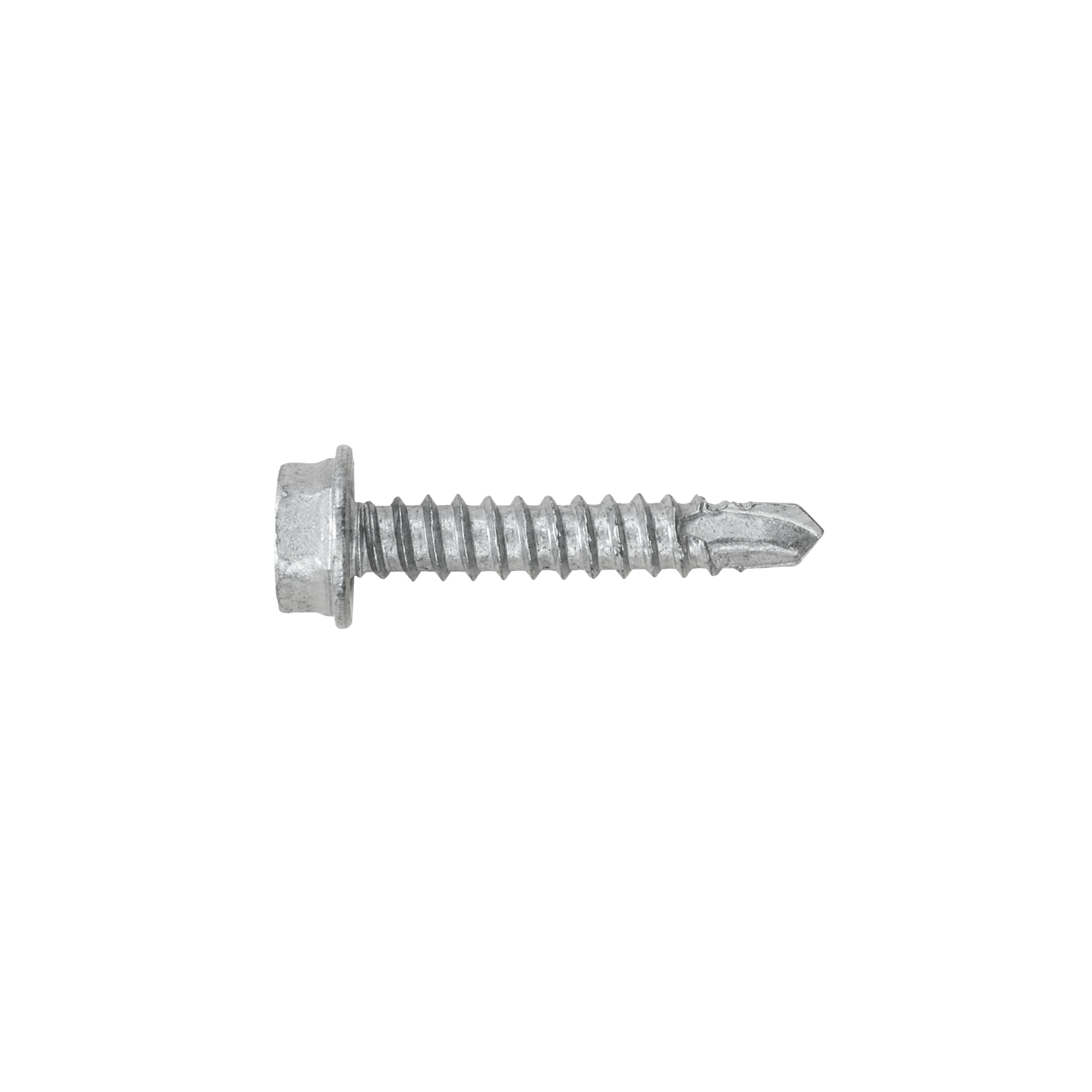

SFS BMSD2-S3 Bi-Metal Self-Drilling Screw - #10 x 1" Hex Washer Head (250 Pack)

The SFS BMSD2-S3 is a premium Bi-Met 300® self-drilling screw designed for light- and medium-gauge metal connections, curtain wall systems, building envelope attachments, and ACM/MCM framing. Its bi-metal construction combines a corrosion-resistant 304 stainless steel head and body with a hardened carbon steel drill point, providing increased drilling capacity without sacrificing exterior durability.

The SD2 self-drilling point eliminates pre-drilling in many metal applications, helping reduce installation time while maintaining reliable holding strength. A low-profile hex washer head provides secure tool engagement and a compact installed appearance. Silver VistaCoat® creates an additional barrier that helps reduce galvanic corrosion when the fastener is used with aluminum, while the fastener’s high ductility helps reduce the risk of delayed embrittlement failure.

Key Features

• Designed for light- and medium-gauge metal connections
• Bi-Met 300® construction combines a 304 stainless steel head and body with a hardened carbon steel drill point
• Higher drilling capacity than conventional stainless steel fasteners
• Self-drilling SD2 point eliminates pre-drilling in many metal applications
• Silver VistaCoat® helps reduce galvanic corrosion when used with aluminum
• High ductility helps reduce delayed embrittlement failures

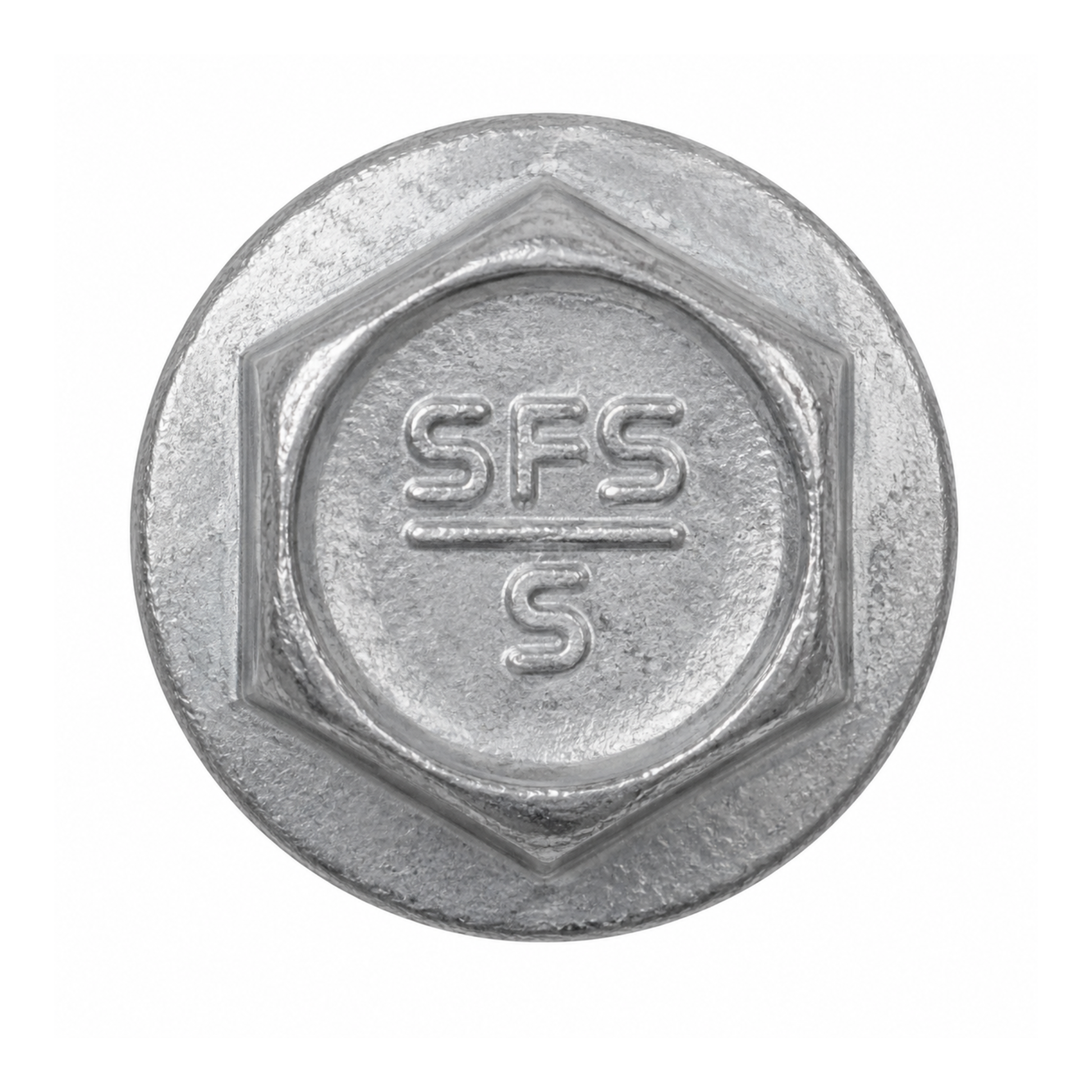

• Low-profile hex washer head provides secure installation and a compact finished appearance

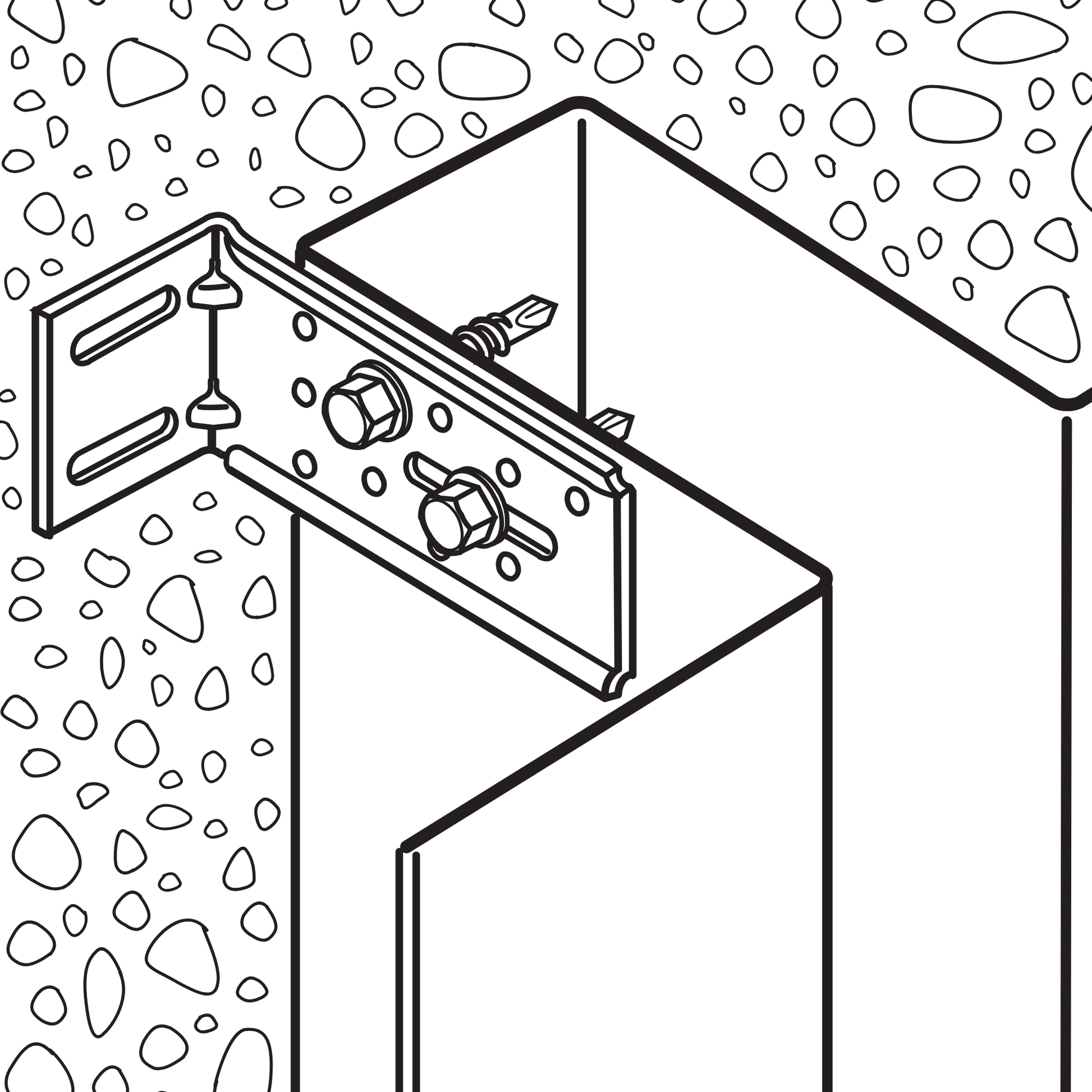

• Suitable for curtain wall, building envelope, ACM/MCM framing, and dissimilar-metal connections

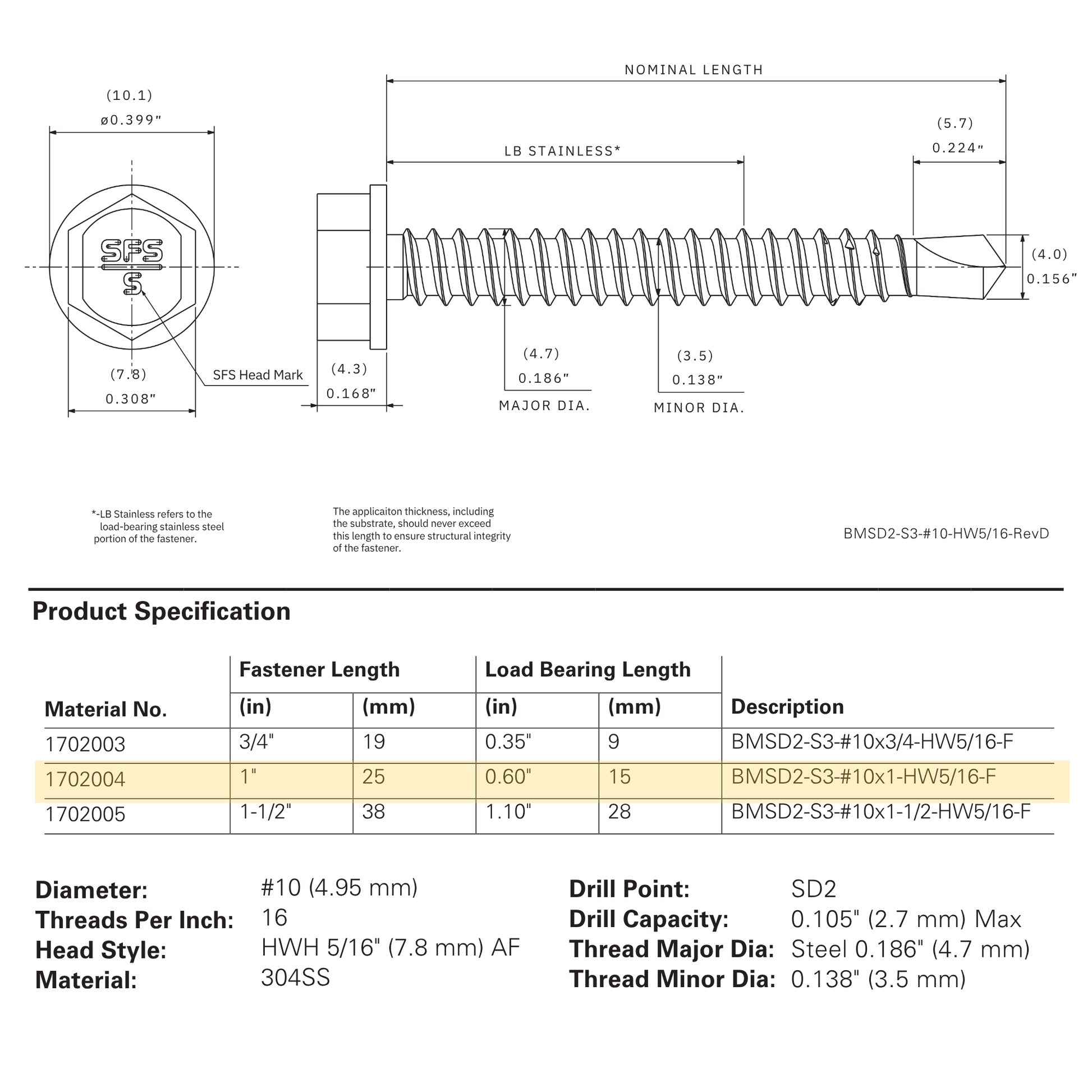

• Available sizes: #10 x 3/4", #10 x 1", #10 x 1-1/2"
